$484.90 USD
Finish/Color

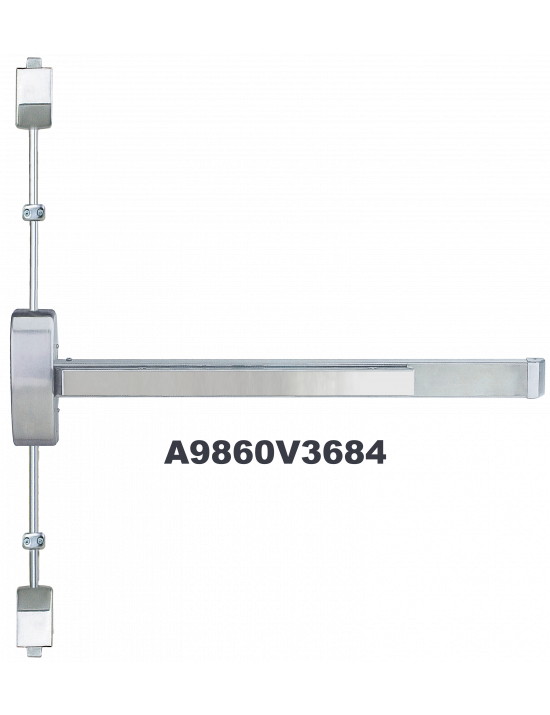

Cal-Royal Products- 9860-V-3684-LHR-32D Surface Vertical Rod Exit Device from Cal-Royal Products is a Grade 1 panic hardware solution designed for secure and code-compliant emergency egress on commercial and institutional doors.

This surface vertical rod (SVR) exit device provides top and bottom latching for enhanced door control, making it suitable for single doors or pairs without a center mullion. The 36-inch push bar ensures fast, intuitive operation in emergency conditions.

Finished in 32D satin stainless steel, the device offers durability and corrosion resistance while maintaining a clean, professional appearance. Engineered to meet ANSI/BHMA Grade 1 standards, the 9860-V series is built for high-traffic, life-safety applications.

VERTICAL ROD TYPE EXIT DEVICES. For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

    • A9860V & AF9860V ADA SERIES
      • ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
      • Retrofits Sargent 8800 Series using 9800 Escutcheon trim
      • Rail assemblies and end caps are made of brass, bronze, or stainless steel. Rail travels in direction of the door swing.
      • Trims are thru bolted for additional security.
      • Conforms & Meets ADA Regulations.
      • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
      • UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
      • UL Listed for Fire Exit Hardware. 3 hours.
      • (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
      • Uncompromising security and safety in single and double fire exit doors.
      • Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
      • Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch on rose trims. Escutcheon trims are rigid and cover 161 cut out.

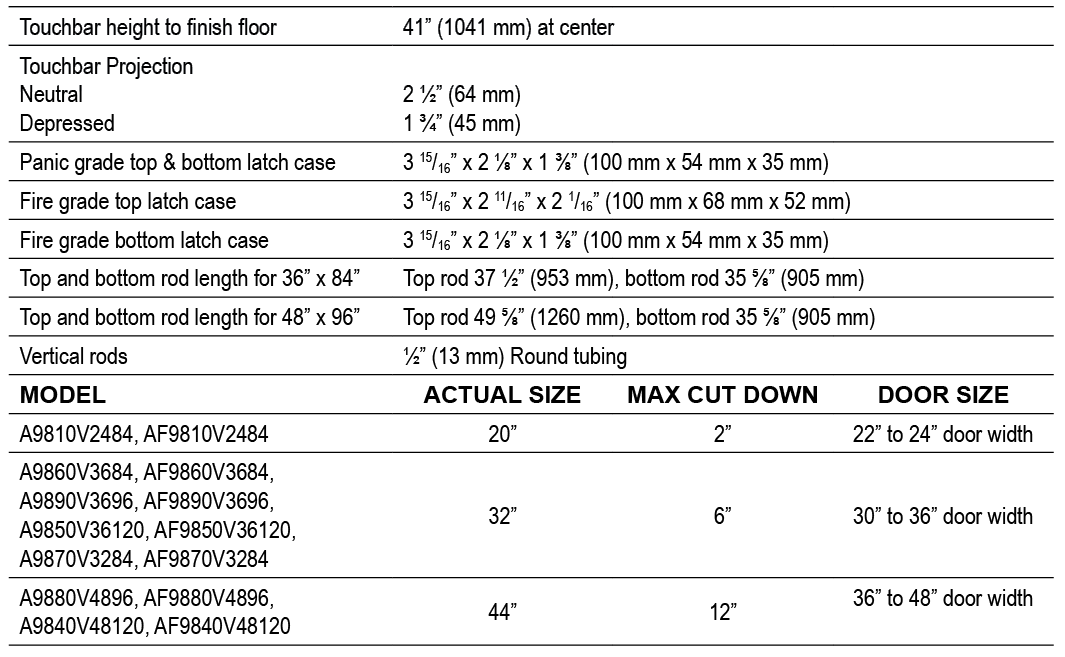

      • For Doors - 1 ¾" thick standard, optional 2 ¼” thick. 3 ¾" minimum stile width for single door application. 3 ½" minimum stile width required for double door application. Lever, thumbpiece, and escutcheon trims available. 2-3/4" backset.
      • Top & Bottom Chassis - Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade)
      • Cover - Brass, Bronze, or Stainless Steel. Covers stock hollow metal doors with 161 cut out.
      • Mounting - Furnished with wood and machine screws. Thru bolts are included and standard packaging on fire-rated devices.
      • End Cap - Brass, Bronze, or Stainless Steel construction.
      • Alarm - Available.
      • Hand - Handed, Easily field reversible. Specify LHR or RHR for convenience.
      • Latch Bolt, Spring - Stainless Steel.
      • ANSI Standard - A156.3, Grade 1.
      • Rail Assembly - Heavy gauge brass, bronze, or stainless steel
      • Strike - See strike page.
      • Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.
      • UL and ULC Listed - A9860V Series for panic. AF9860V Series for fire exit hardware for all types or 8' x 10' double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
      • Finish - Architectural plated finishes.
      • Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available.
      • Anti-Microbial Coating - Available on US32D only. Use part # ANTB-EXIT
      • All exit devices shall be of touch bar design with smooth operation and be operative over ⅔ of the door’s clear opening width
      • All exit devices must be listed under “Panic Hardware” in the Accident Equipment List of Underwriter’ Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes
      • All springs shall be of stainless steel throughout
      • All exit devices shall be of chassis mounted unit construction.
      • All exit devices shall be ANSI A156.3, Grade 1.



        Templates/Installation Instructions

        Template A9860 Top and Bottom Chassis
        Template - A9800 SurfaTemplate - AUXILLIARY FIRE LATCH ASSEMBLY DOOR LEAFce Vertical Rod Exit Device
        Template - AF9800 Top and Bottom Chassis
        Template - AF9860V Fire Vertical Rod Exit Device
        Installation Instruction - AF9860 x 120 (Fire Rated), Surface Vertical Rod
