The CGN05-26D Grade 1 Lever Lockset from Cal‑Royal Products is a commercial-duty cylindrical lockset engineered for high-traffic applications requiring durability and abuse resistance. Built to ANSI/BHMA Grade 1 standards, this lockset delivers long-term performance in demanding environments.

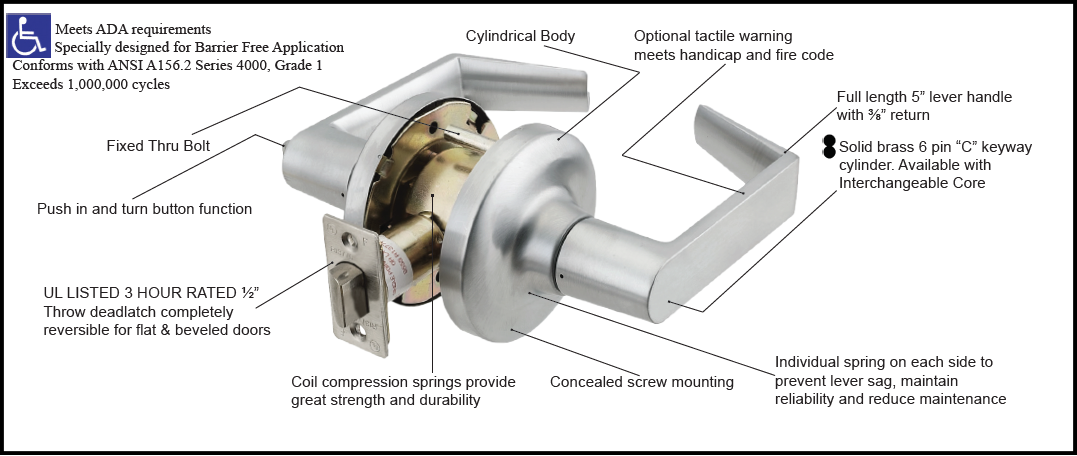

Featuring an integrated clutch mechanism, the CGN05 helps prevent damage from forced rotation, vandalism, or excessive torque, allowing the lever to disengage under abuse while maintaining lock integrity. The 26D satin chrome finish provides a clean, professional appearance suitable for modern commercial interiors.

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.

• Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, GRADE 1
• Extra Heavy Duty Cylindrical Leversets
• Available with Interchangeable Core


  • APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
  • DOOR RANGES 1 ⅜” to 2” thickness doors.
  • BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
  • LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
  • LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. Optional 2 ¼” x 1 ⅛” for 2 ⅜” backset.
  • STRIKES ASA strike standard, “T” and full lip strike available on request.
  • EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.
  • CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 /60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
  • INTERCHANGEABLE CORE Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
  • ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 1
  • TACTILE & LEAD LINING available upon request.
